Toode on arhiivis, kuvatakse vaid informatiivsel eesmärgil.
Info täiendamisel!
Advanced komplektis on ilma ekraanita pult
Drooni lennutamine - kas mul on vaja drooni lennuluba?

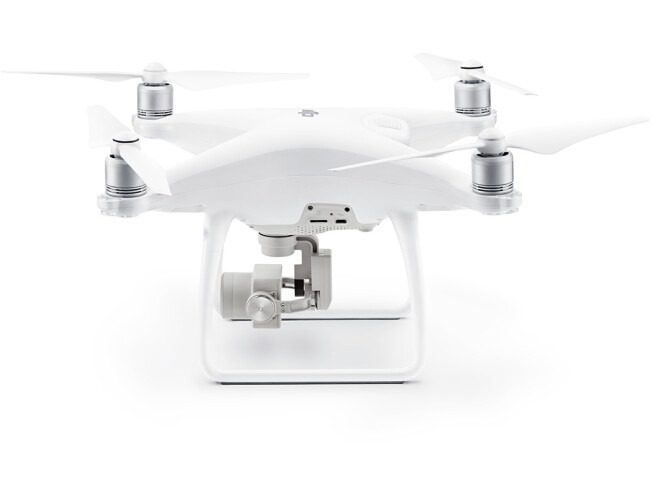

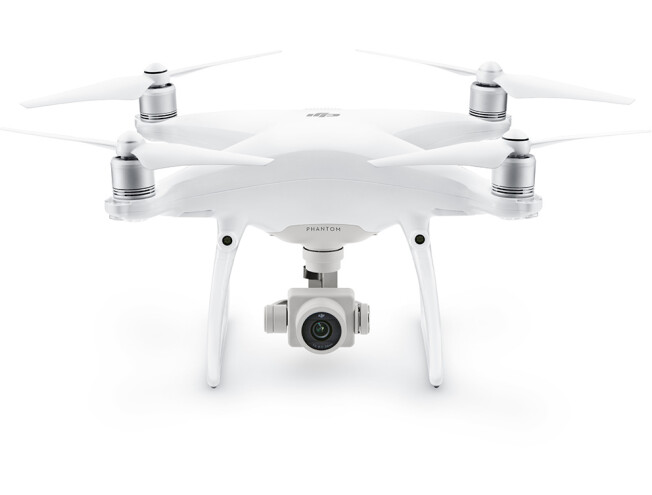

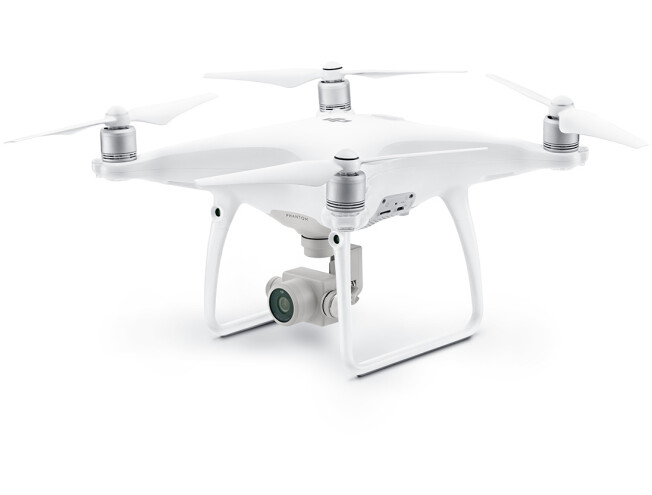

DJI Phantom 4 Advanced kaamera on pärit Phantom 4 Pro droonilt. 1-tolline CMOS sensor võimaldab teha 20 megapiksliseid fotosid ja filmida 4K videot kuni 60 kaadrit sekundis. Lisaks suuremale sensorile on kaameral mehaaniline katik. See tähendab, et enam ei tekita probleeme rolling shutter moonutused kaadritelt ja filmida ka suurtel kiirustel. Ka kaamera optikat on parandatud, uus objektiiv koosneb 8 elemendist 7 grupis.

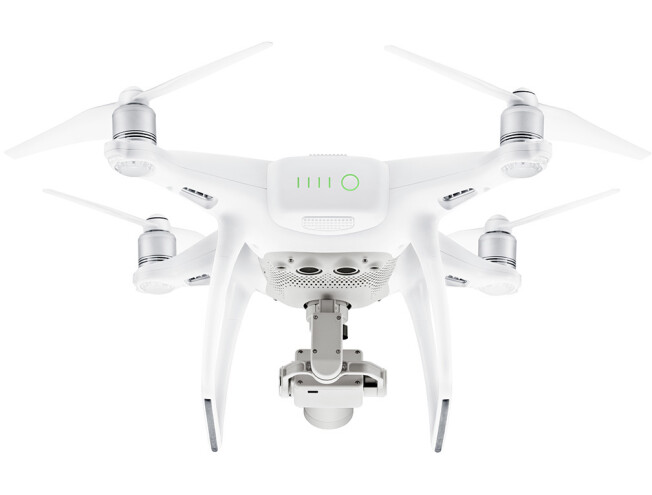

DJI Phantom 4 Advanced kasutab viit sensorit autonoomseks lendamiseks. Allapoole suunatud Vision Positioning moodul tagab täpse asukoha jälgimise. Kasutades drooni siseruumides, on võimalik lennata sama turvaliselt kui GPS režiimiga õues, kuna droon ei “uju” kohapealt ära.
Draw lubab kasutajal ekraanile joonistades drooni juhtida. Tõmmates sõrmega ekraanile sobiva marsruudi, lendab droon mööda seda hoides kõrgust. See lubab kasutajal keskenduda kaamera tööle.
Vahet pole, kas jooksed, suusatad, kihutad autoga või sõidad kanuuga kosest alla – Phantom 4 võtab selles režiimis kasutusele nii subjekti jälgimise, tuvastamise kui takistuste vältimise ning lendab sinuga kaasa. Uus süsteem eristab kas soovid jälgida inimest, autot või looma ja seadistab drooni vastavalt.
TapFly režiimis piisab Phantom 4 Advanced juhtimiseks kõigest tahvelarvuti või nutitelefoni ekraanile vajutamisest. See on eriti kasulik siis, kui juhtkangidega lendamine osutub sinu jaoks esmapilgul liiga keeruliseks või soovid keskenduda kadreerimisele mitte drooni juhtimisele. TapFly režiimis töötavab ka takistusi tuvastavad süsteemid ning tänu sellele suudab Phantom 4 iseseisvalt takistusi vältida. Uuendus näitab ekraanil drooni liikumissuunda.
Uuendatud Return to Home režiimis valib droon ise keskkonnatingimusi arvestades parima võimaliku tee koju. Samuti salvestab droon lennatud tee ja tuleb sama teed tagasi kui puldi ja drooni vaheline signaal on kadunud.
Gesture Mode lubab drooni kasutada ka ilma puldita. Suunates kaamera enda poole, teeb droon Sinust pildi viibutades käsi teatud moel. DJI Phantom 4 Advanced suudab õppida ja tuvastada erinevaid liigutusi ja läbi nende rakendada erinevaid intelligentseid lennurežiime.
Uus DJI GO 4 rakendus võimaldab drooni piloodil muuta rohkemaid kaamera seadeid. Näiteks ISO tundlikust, ava, säriaega ja pildi formaati mugavalt ja otse ekraanilt. Samuti ilmuvad muudatuselt koheselt ekraanil.
| Weight (Battery & Propellers Included) | 1368 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 19.7ft/s(6 m/s) P-mode:16.4ft/s(5 m/s) |
| Max Descent Speed | S-mode:13.1ft/s(4 m/s) P-mode:9.8ft/s(3 m/s) |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | 42°(S-mode) 35°(A-mode) 25°(P-mode) |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Obstacle Sensory Range | 2 - 98 feet (0.7 - 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |
| Operating Frequency | 2.400 - 2.483 GHz |
|---|---|
| Max Transmission Distance | 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power (EIRP) | 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm |
| Operating Current/Voltage | 1.2 A@7.4 V |
| Video Output Port | GL300E: HDMI GL300C: USB |
| Mobile Device Holder | GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300C: Tablets and smart phones |
| Capacity | 5870 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 89.2 Wh |
| Net Weight | 468 g |
| Charging Temperature Range | 41° to 104°F (5° to 40°C) |
| Max Charging Power | 100 W |
| Stabilization | 3-axis (pitch, roll, yaw) |
|---|---|
| Controllable Range | Pitch: -90° to +30° |
| Max Controllable Angular Speed | Pitch: 90°/s |
| Angular Control Accuracy | ±0.02° |
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ |
| ISO Range | Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 - 1/2000 s |
| Electronic Shutter Speed | 8 - 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160 3840×2160 2720×1530 1920×1080 1280×720 |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60Mbps H.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Voltage | 17.5V |
|---|---|
| Rated Power | 100 W |
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Adv: 220 ms (depending on conditions and mobile device) Phantom 4 Adv +：160 - 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
| Recommended Devices | iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1. *Support for additional devices available as testing and development continues. |
