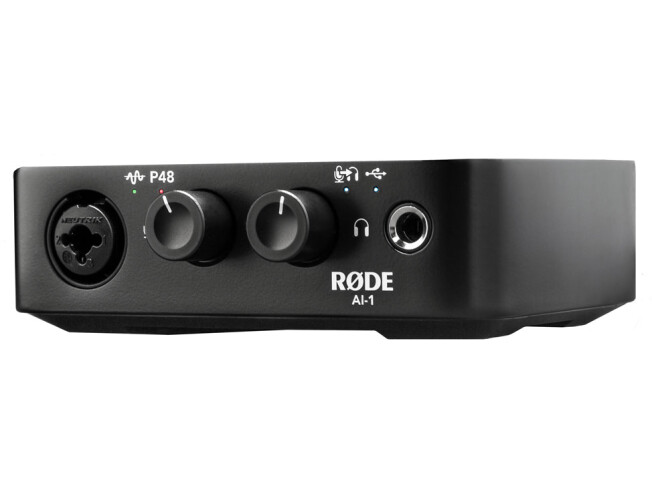

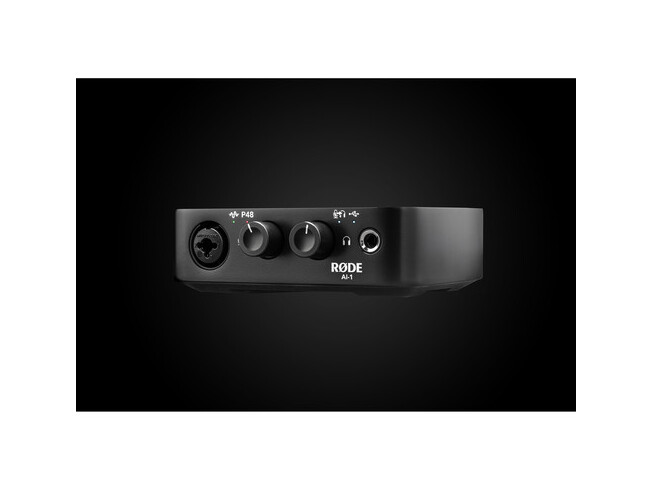

The Rode AI-1 is a studio-quality audio interface well suited for recording vocals, instruments, and voice-overs into your Mac or Windows computer. The interface features a single, combo XLR-1/4" input with phantom power, two balanced 1/4" monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.
The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.
- Desktop USB audio interface with low-noise Class-A discrete preamplifier
- Sampling rate of up to 96kHz/24-bit
- One combo XLR-1/4" combo input

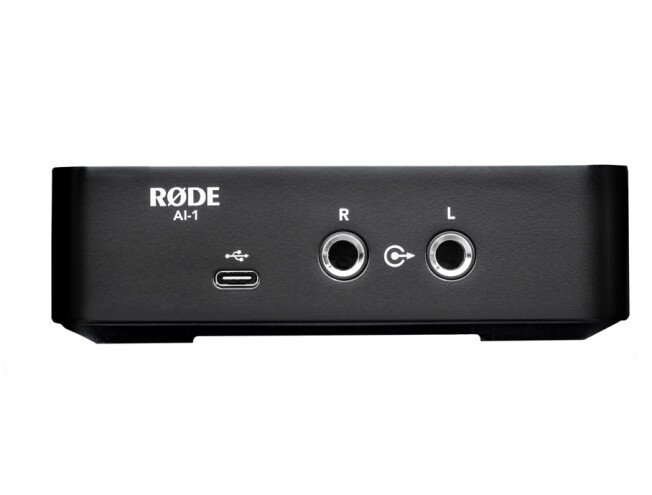

- Two balanced 1/4" monitor outputs
- One discrete, studio-quality headphone output
- Phantom power for condenser microphones
- Zero-latency monitor mode
- USB bus powered
- USB Type-C connector for future proof operation
- Rugged body with Satin Black Finish
- Class compliant—no drivers required
- Includes Ableton Live Lite
- Includes USB cable
AI-1 Audio Interface Specifications
| Computer Connectivity | USB |
| Form Factor | Desktop |
| Simultaneous I/O | 1 x 2 |
| Number of Preamps | 1 |
| Phantom Power | Yes |
| Bit Depth | 24-bit |
| Sample Rates | 44.1 kHz |
| Analog Inputs | 1 x Neutrik XLR-1/4” combo |
| Analog Outputs | 2 x 1/4” (impedance balanced) |
| Direct Monitor | Yes |
| USB | 1 x USB Type C |
| Bus Powered | Yes |
| OS Requirements | Mac OS 10.10 or later |
| Power | USB bus-powered |
| Depth | 100mm total (with knobs) |
| Width | 124mm |
| Height | 38mm |
| Weight | 1lb 3.7oz |
Input
XLR/MIC INPUT
| Dynamic Range | 104dBA |
| Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) | –128dBA |
| Frequency Response (Measured after ADC) | 20Hz – 20kHz better than ±1dB |
| Gain Range | 0dB – >45dB |
| Gain Range | 1.3k Ohms |
INSTRUMENT INPUT
| Dynamic Range | 99dBA |
| Frequency Response (Measured after ADC) | 20Hz – 20kHz better than ±1dB |
| Gain Range | 0dB – >45dB |
| Input Impedance | 900k Ohms |
Output
MONITOR OUTPUTS
| Maximum Output Level | -6dBu |
| Frequency Response | 20Hz – 20kHz better than ±1dB |
HEADPHONE
| Max output power at 1% THD | 32Ohms – >210mW |
- Rode AI-1 Studio-Quality USB Audio Interface
- USB Cable
- Registration Card for Ableton Live Lite
