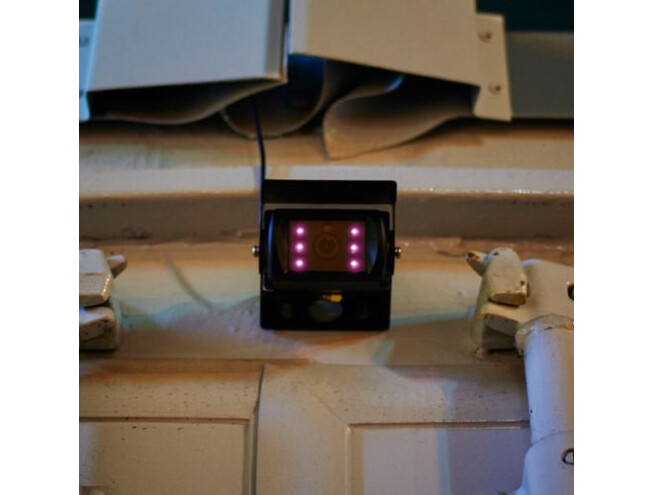

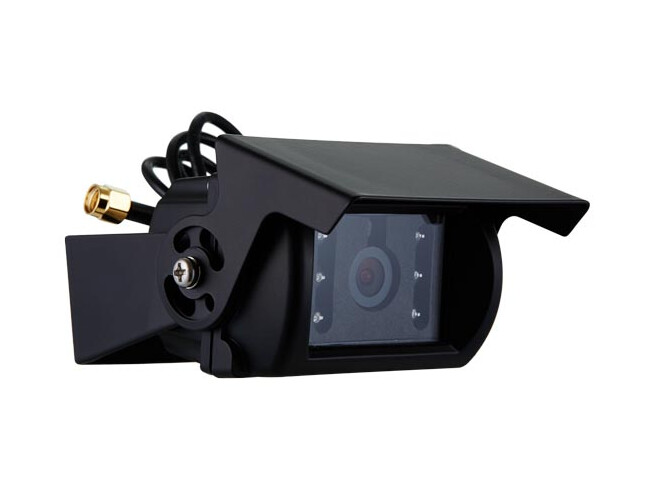

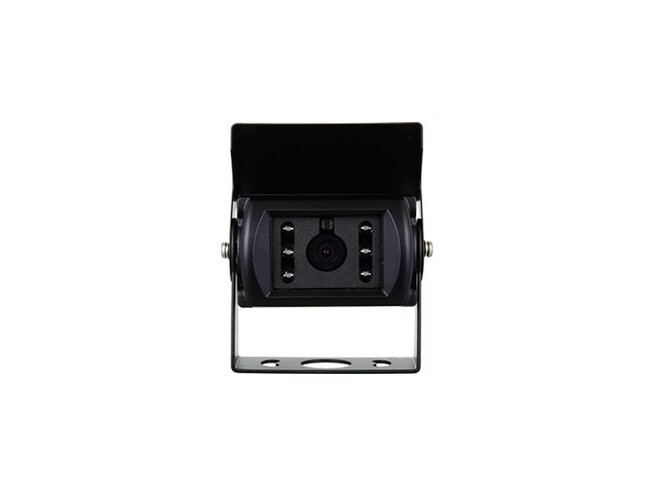

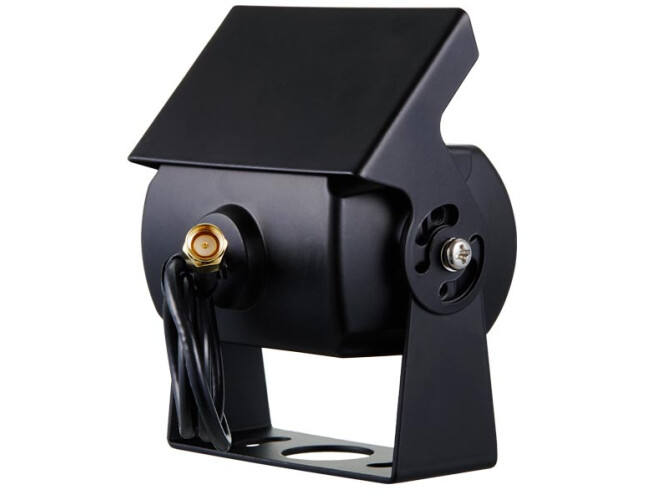

The external waterproof rear cam with embedded IR lights and up to 20m coaxial cable is ideal for most large vehicles.
Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.

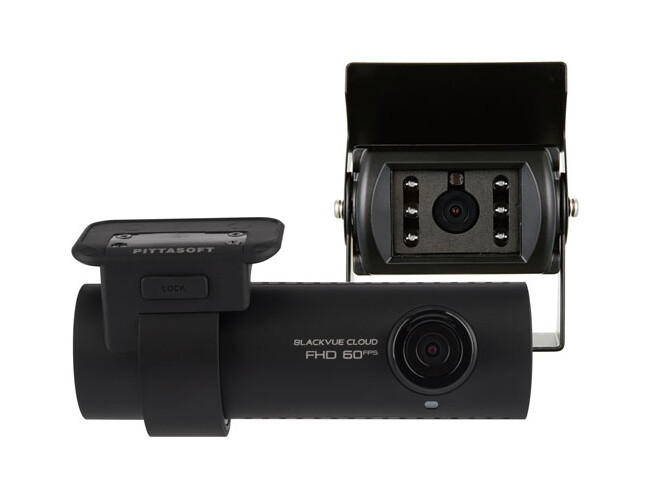

The front camera has a 139° wide angle of view and a cutting-edge Sony STARVIS CMOS sensor and the rear camera has a 120° angle of view and 2.1MP CMOS sensor augmented by 6 IR LEDs for clarity in total darkness.
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape. This way, the dashcam is invisible to the driver’s eye. The rear camera can be installed externally at the back of the vehicle and connected to the front unit with the included video cable.
Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your BlackVue can protect your car when you are away.
In Parking Mode, your dashcam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a Power Magic Pro, Power Magic Battery Pack or Power Magic Ultra Battery (note: Ultra Battery is not compatible with 24V electrical systems) to enable this feature.
Event Files Overwrite Protection:
Dashcams record in a loop, overwriting older files when the memory is full. BlackVue DR750S-2CH TRUCK can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
The DR750S-2CH TRUCK is compatible with the Tamper-Proof Case.
The Tamper-Proof Case is an accessory that blocks access to the microSD card, the format/Wi-Fi On-Off button and the power and video cables.
There are 2 variations, one adapted to vertical windshields and the other one adapted to regular windshield types.
| Model Name | DR750S-2CH TRUCK |
| Color/Size/Weight | Front: Black / Width 118.5 mm x Height 36 mm / 90g
Rear: Black / Width 70.0 mm x Height 44.4 mm / 180g |
| Memory | microSD Card (16GB/ 32GB/ 64GB/ 128GB) |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* For Parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required. |
| Camera | Front: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: CMOS Sensor (Approx. 2.1 megapixels) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 120°, Horizontal 100°, Vertical 60° |
| Resolution/
Frame Rate |
Full HD (1920×1080) @60fps – Full HD (1920×1080) @30fps Full HD (1920×1080) @30fps – Full HD (1920×1080) @30fps Full HD (1920×1080) @30fps – HD (1280×720) @30fps HD (1280×720) @30fps – HD (1280×720) @30fps *Frame rate may vary during Wi-Fi direct streaming. |
| Image Quality | Highest, High, Normal |
| Video Compression Mode | MP4 |
| Wi-Fi | Built-in (802.11n(2.4~2.4835GHz)) |
| GPS | Built-in |
| Microphone | Built-in |
| Speaker
(Voice Guidance) | Built-in |
| LED Indicators | Front camera: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Rear camera: Security LED |
| Wavelength of Interior camera IR light | 940 nm (6 Infrared (IR) Lights) |
| Button | Wi-Fi / Format button:
Press once to turn on/off Wi-Fi. Press and hold for 5 seconds and once voice commands start, release the button. Then press once again to reset the Wi-Fi SSID and password or press and hold for 5 seconds to format the microSD card. Proximity sensor: Touching the proximity sensor turns on/off audio recording or triggers manual recording depending on the firmware settings. |
| Sensor | 3-Axis Acceleration Sensor |
| Backup Battery | Built-in super capacitor |
| Input Power | DC 12 V − 24 V (DC Plug: (Ø3.5 x Ø1.35), MAX 1 A/12 V) |
| Power Consumption | Avg. 370 mAh (4.44 Wh at 12 V, when GPS and Wi-Fi is On)
Avg. 310 mAh (3.72 Wh at 12 V, when GPS and Wi-Fi is Off)
* Approx. 60mAh increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 70 °C (-4 °F − 158 °F ) |
| High Temperature Cut-Off | Approx. 80 °C (176 °F) |
| Certifications | FCC, CE, RoHS, Telec, WEEE, IC |
| Software | BlackVue Viewer
* Windows XP or higher and Mac Yosemite OS X (10.10) or higher |
| Application | BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher) |
| Others | Adaptive Format Free File Management System |
